GSM built-in antenna PCB 3G compatible with multiple connector antennas

FOB Reference Price:Get Latest Price
$0.10 - $0.80 / Piece | 10 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Samples:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SZHR
Model Number:
GA11
Type:
3G Antenna
Description:
GSM internal antenna
Frequency:
824~960/1710~1990MHz
Polarzation:
linear, vertical
Mpedance:
50 OHM
Size:
47*7.6*1.2mm
Cable:
RF1.13/RF1.37
Frequency Range:
824~960/1710~1990MHz
Operating temperature:
-40℃~+85℃
Connector:
IPEX/MCF
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
standard safe package
Port
Shenzhen
Lead Time :
1-3 Business days

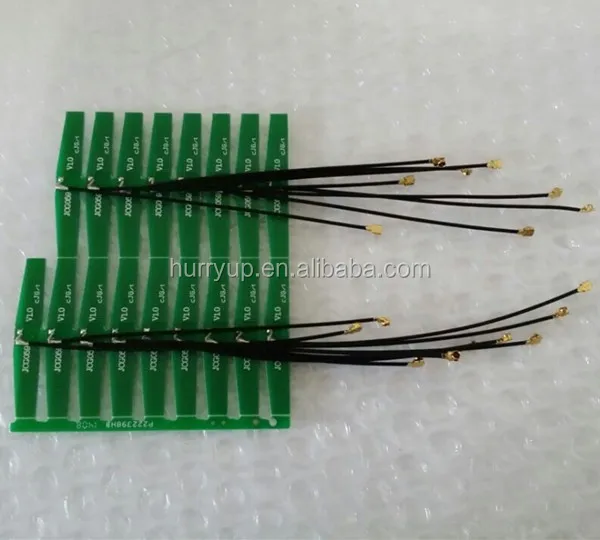

GSM Internal Antenna 3G PCB Antenna Compatiable With Multiple  Connectors





Product Description
ItemSpecifications
AntennaFrequency Range824~960/1710~1990MHz
PolarizationLinear
Gain2dBi
V.S.W.R(min)<.0
Impendance50ohm

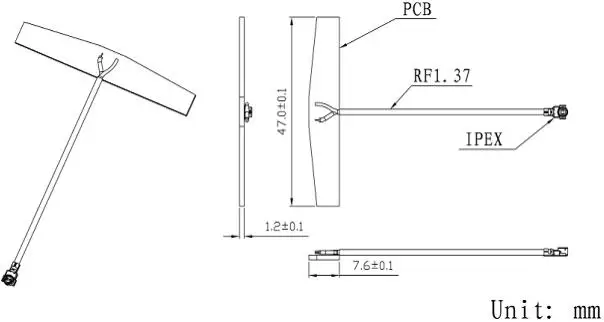

PCB Dimension47*7.6*1.2mm
MechanicalCableRF1.13/RF1.37
ConnectorIPEX/MCF
Mounting MethodAdhesive
EnvironmentalOperating Temperature-40°C + 85°C
Relative HumidityUp to 95%
Vibration10 to 55Hz with 1.5mm amplitude 2hours
Environmentally FriendlyROHS Compliant



GSM atnenna GA101 (1).jpg

GA11 IPEXGA11
