Q24 Plus Sierra Wavecom Wireless GSM 2G Module Q24PL001 In Stock

FOB Reference Price:Get Latest Price
$12.00 - $15.00 / Piece | 2 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Wavecom
Model Number:
Q24PL001
Application:
M2M
Type:
GSM GPRS module
Frequency:
Quad-band 850/900/1800/1900 MHz
Dimensions:
58x32x6 mm
Weight:
20 g
Product name:
Sierra Q24PL001
Model No.:
Q24PL001
Module Condition:
in stock
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day Q24PL001
Packaging & Delivery
Packaging Details
in Standard Safe Package for Q24PL001
Port
Shenzhen or Hongkong, China
Lead Time :
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 7 To be negotiated

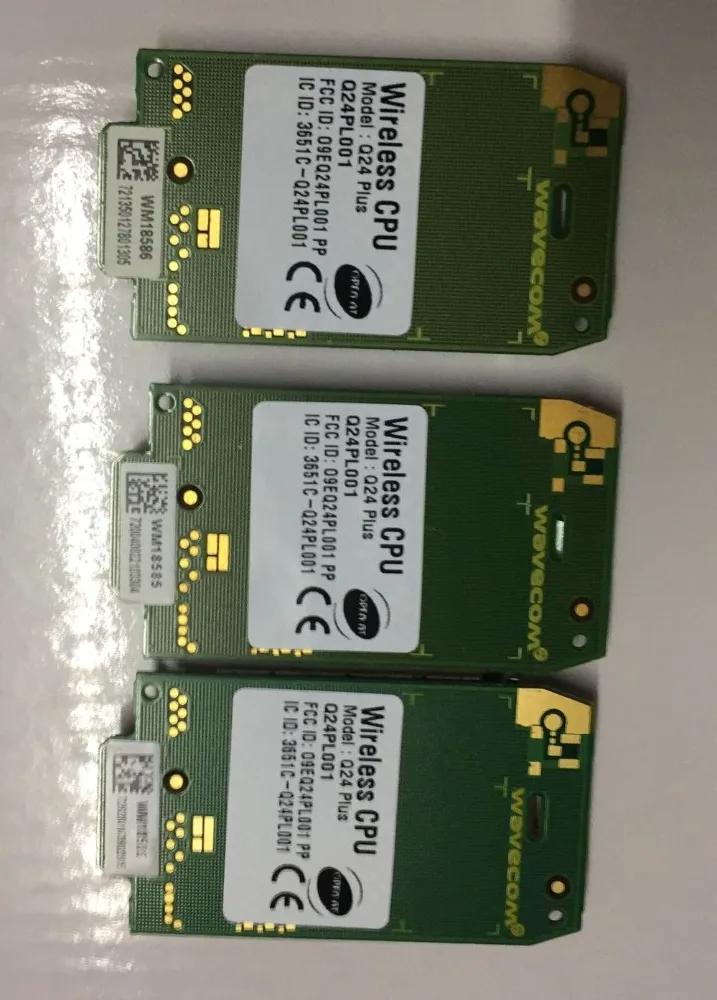

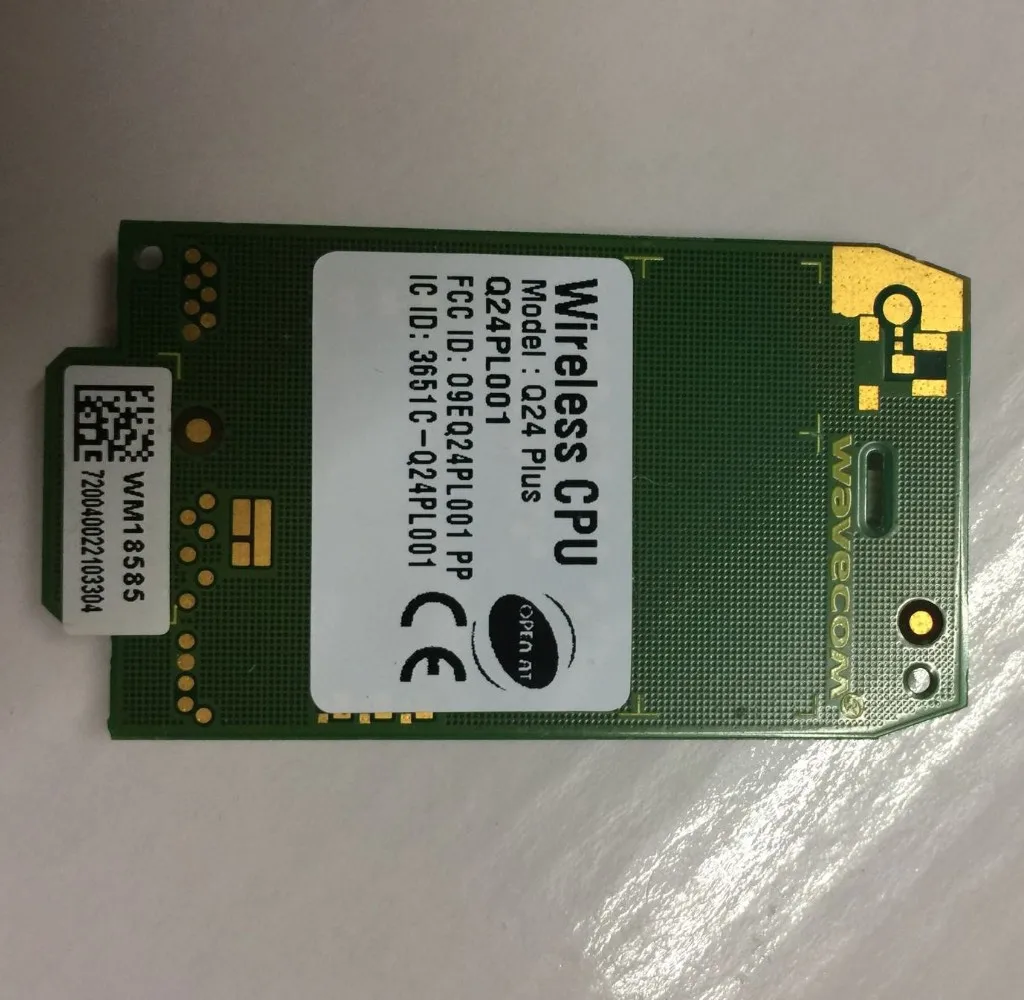

Wavecom Wireless CPU GSM / GPRS Module: Q24 Plus Q24PL001 IN STOCK

Q24PL001 is the smallest programmable wireless CPU on the market. Open AT OS running on the ARM9 core for applications running speed is greater than 16MIPS (using VariSpeed). Q24PL001 equipped with up to 44 GPIO, particularly suitable for applications that require a large number of connections.

Core processor
ARM7, 32 bit, 52 MHz running Open AT®RTOS as standard

Memory
Internal, 32Mb Flash and up to 16Mb SRAM or PSRAM

Digital Control
11 IOs, 1 INT, 1 SPI, 1 I2C, 5 x 5 keyboard

Digital Comms
2 UART

Analogue Interfaces
1 ADC

Audio Interfaces
2 analog differential audio

Cellular Radio
Supporting 850-900-1800-1900MHz GSM band

Cellular Data
GSM standard SMS, Fax, CSD (circuit), GPRS cl 10 (packet)

Cellular Voice
Supported Codecs (FR/EFR/AMR ) (HR as option), VDA2 C

RF and IO connectivity
Multiple RF connections possibility (UFL, MMS, connection which allows to support board to board solution, 60 I/O Pins connector

Dimensions
L58 x W32 x H 3.9mm

1. ARM 946E-S, 32bit, 104MHz, 30MIPS
2. Open AT memory
3. 1.5Mbyte ROM, 512kByte RAM
4. 128byte Objects
5. OS 6.61 version of the
6. OPEN AT 4.1
7. Is compatible with Microsoft Windows Mobile
8. kinds of power mode; Real-time OS
9. More than 350 AT commands and API
10. RTC with calendar
11. File Transfer (FTP)
12. TCP / IP / UDP / DNS
13. 4-band 850/900/1800/1900MHZ
14 GSM CSD 14.4kbps
15. GPRS multi-slot class12, class B
16. I / F Connector: 60pin
17. Power Supply: Rating 3.6vdc-peak 1.7A
18. Temperature: classA-20 ° C to +55 ° C
19. ClassB-35 ° C to +85 ° C
20. ClassA-40 ° C to +85 ° C
21. Automatic temperature shut down
22. Full RF shielding
23. External Dimensions: 58 × 32 × 6 mm
24. Weight: 20g (including shielding)

Q1.What is the minimum order quantity for your products?
A1.Minimum order quantity starts from ONE piece.

Q2. How can we get samples from you?
A2.Samples are available. Normally we take 2 days to arrange samples. If we have no business record with you before, we need to charge boot samples cost and post courier freight.

Q3.When will you send the parts to me?
A3.We will send the parts to you within 3-5 workdays after receiving your payment.

Any other more questions, please feel free to contact us.
We are always at your service !
