* High Performance SiRF STAR IV GPS chipset * L1 1575.42MHz * Channels: 48

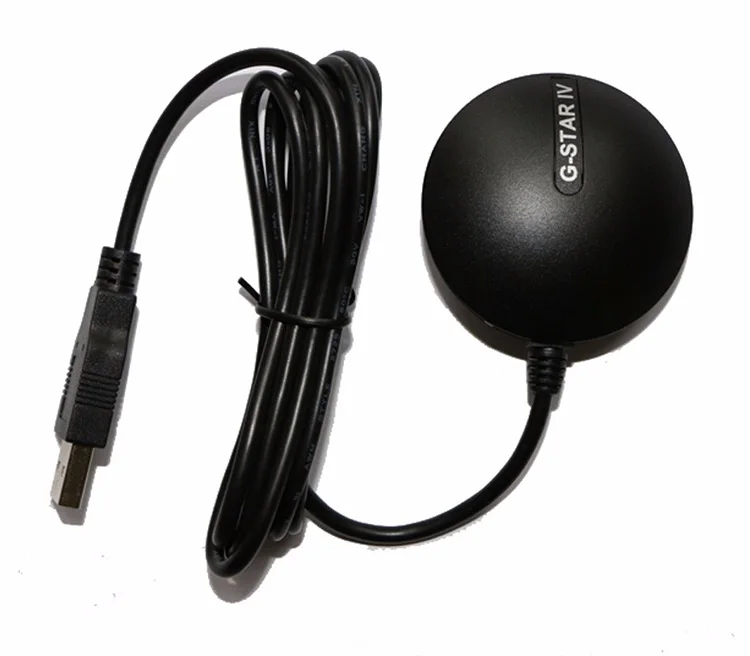

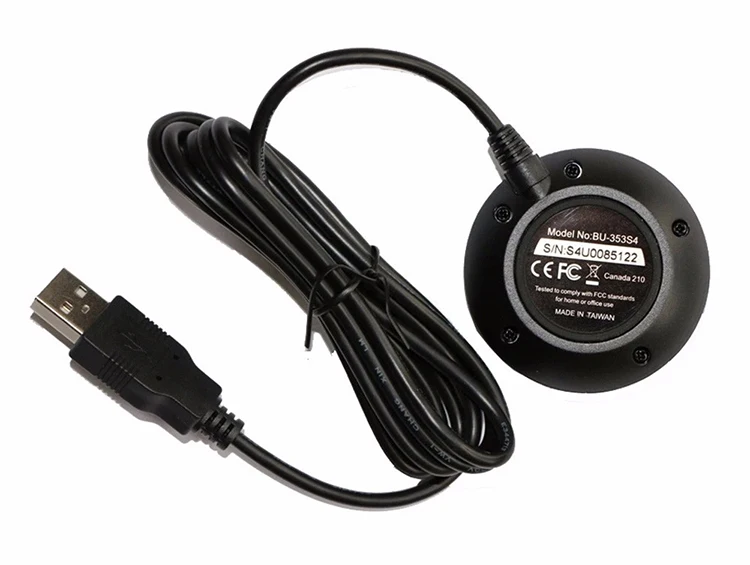

BU-353S4 is a USB GPS receiver that features a highly sensitive, low power consumption chipset in a ultra compact form factor. The BU-353-S4 is powered by a SiRF Star IV GPS chipset, and will provide you with superior performance in urban canyons, and in dense foliage. With the SiRF CGEE (Client Generated Extended Ephemeris) technology, has the capability of predicting satellite positions for up to 3 days in advance, and will deliver a CGEE-start time of less than 15 seconds under most conditions without any network assistance. The bu-353-S4's MicroPower mode allows the receiver to stay in a hot start-like condition almost continuously while consuming very little power.
Features: *SiRF Star IV high performance GPS Chipset *Highly sensitive (Tracking Sensitivity: -163 dBm) *Extremely fast TTFF (Time To First Fix) at low signal level *Support NMEA 0183 data protocol *Built-in SuperCap to reserve system data for rapid satellite acquisition *Built-in patch antenna and magnetic pad *Super-cohesive magnetic for mounting on the car *Waterproof and non-slip on the bottom *LED indocator for GPS
Specifications : Chipset: SiRF Star IV Frequency: L1 1575.42MHz C / A code: 1.023 MHz chip rate Number of Channels: 48 channels tracking Sensitivity: -163 dBm
Acquisition Time: Readmission: Average 0.1 seconds Hot Start: Average 1 seconds Warm start: 38 sec average Cold and warm start: 42 sec average
Related restrictions: Height: 18,000 m (60,000 ft) maximum Rate: 515 m / sec (10,000 knots) maximum Gravity: Less than 4G
Power: Main power input: 4.5V ~ 6.5V DC input Power consumption: 80mA
Agreement: Operational level: TTL level Output Voltage: 0V ~ 2.85V Transfer rate: 4,800 bps Output format: NMEA 0183 GGA, GSA, GSV, RMC, VTG, GLL Physical Characteristics: Size: 53mm diameter, 19.2mm height Cable length: 1.5 m Operating temperature: -40 ° C to +85 ° C

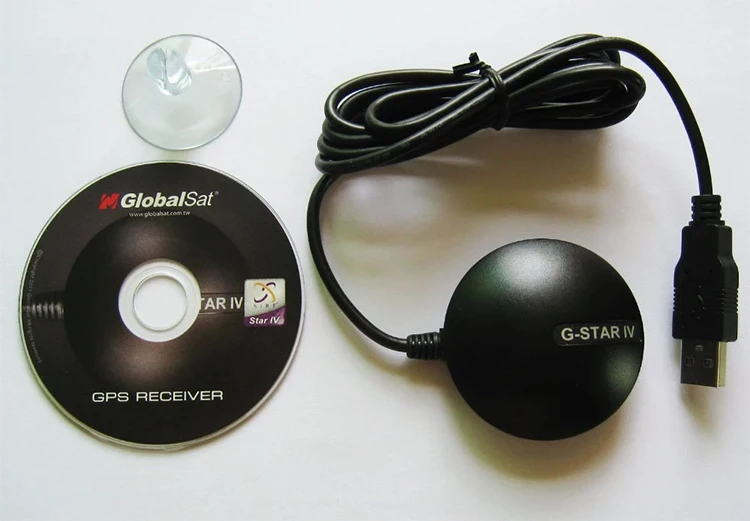

Package Included: 1.USB GPS Receiver 2.Suction Cup 3.CD Driver with user manual
