GAM-1513-MTR GoTop GPS module with built in antenna

FOB Reference Price:Get Latest Price
$4.00 - $5.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Samples:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
GoTop
Model Number:
GAM-1513-MTR
Package:
Standard 250pcs/package
D/C:
New&original
Type:
GPS antenna module, MTK chipset GPS
Application:
wireless control
Brand:
GoTop
Model:
GAM-1515S-MTR
Status:
Brand new& original
Module dimensions:
15.3x13.2x7.5mm
antenna dimensions:
12x12x4mm
Operating Temperature:
-40 to 85℃
Operating voltage:
2.8V to 4.3V
Weight:
Approx. 1.8g
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
STANDARD
Port
Shenzhen FOB

GAM-1513-MTR GoTop GPS module with built in antenna

MTK version of the ROM scheme of GPS single-mode positioning module (module antenna integration products.)

GAM-1513-MTR

Product introduction:

  • Product size: 15mmx13mmx6.8mm/4.8mm

  • With high performance and low power MTK MT3337 chip design, using KDS 0.5PPM high precision TCXO

  • High sensitivity GPS equipped with GB INPAQ antenna, antenna specification 12mmx12mmx4mm/2mm

  • Built in LNA, high gain and low noise amplifier; weak signal can achieve rapid positioning

  • Communication: UART / TTL

  • Low power consumption: Max 28mA 3.3V: 2.8V to 4.3V working voltage range, voltage range: 2.0V to 3.6V backup

  • Made of lead-free technology, conforms to the RoHS standard.

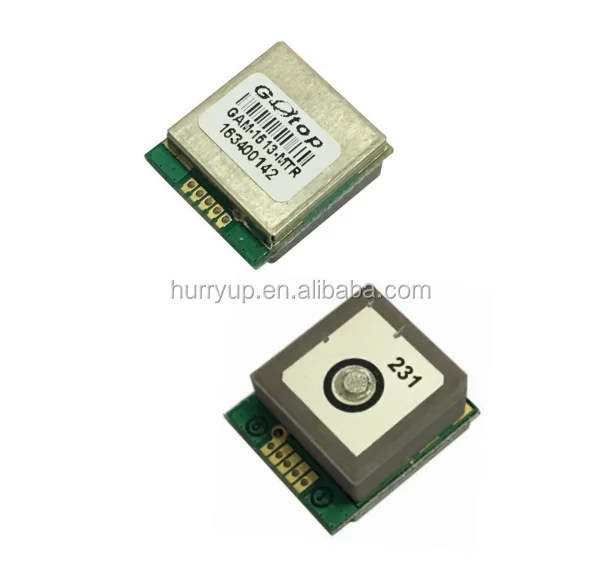

    GAM-1513-MTR 600X600.jpg

Performance Specification:

Parameter

Specification

Receiver  Type

GPS L1  frequency band, 66 channel

Sensitivity

Tracking

Acquisition

-165dBm

-156dBm(hot)

-148dBm(cold)

Accuracy

Position

Velocity

Timing  (PPS)

5m CEP without SA

0.1m/s  without SA

40ns  RMS

Acquisition  Time

Cold  Start

Warm  Start

Hot  Start

Re-Acquisition

38s

35s

1s

<1s

Power  Consumption

Tracking

Acquisition

Sleep/Standby

28mA  3.3V Vcc

28mA

TBD

NavigationDataUpdate  Rate

1Hz



Operational  Limits

Altitude

Velocity

Acceleration

Max  18,000m

Max  515m/s

Less  than 4g


Features
 Build on high performance, low-power MediaTek MT3337 chip set
Ultra high Track sensitivity: -165dBm
 Extremely fast TTFF at low signal level
Built in high gain LNA
 Low power consumption: Max 28mA 3.3V
NMEA-0183 compliant protocol or custom protocol
Operating voltage: 2.8V to 4.3V
 Operating temperature range:-40to85℃
 Patch Antenna Size: 12x12x4mm
 Module Size: 15.3x13.2x7.5mm
 RoHS compliant (Lead-free)
