Internal Flexible PCB FPC 3G Mobile Antenna with 1.13 RF Cable

FOB Reference Price:Get Latest Price
$0.50 - $1.20 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Hurryup
Model Number:
FPC-3G-A013
Working frequency::
820~960/1710~2170 MHZ
Impendance::
50Ω
Gain::
2dBi
Cable type::
RG113 or customized
Connector::
IPEX/SMA or customized
Coacial Cable length::
RF1.13 115mm standard/customized
Operating Temperature::
-40°C to +80 °C
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Standard Package
Port
Shenzhen

Internal Flexible PCB FPC 3G Mobile Antenna

with 1.13 RF Cable

Model No: HR-FPC-3G-A013

Supported Connector Type: Free End, IPEX/UFL, SMA, ect



Product Images



Product Description

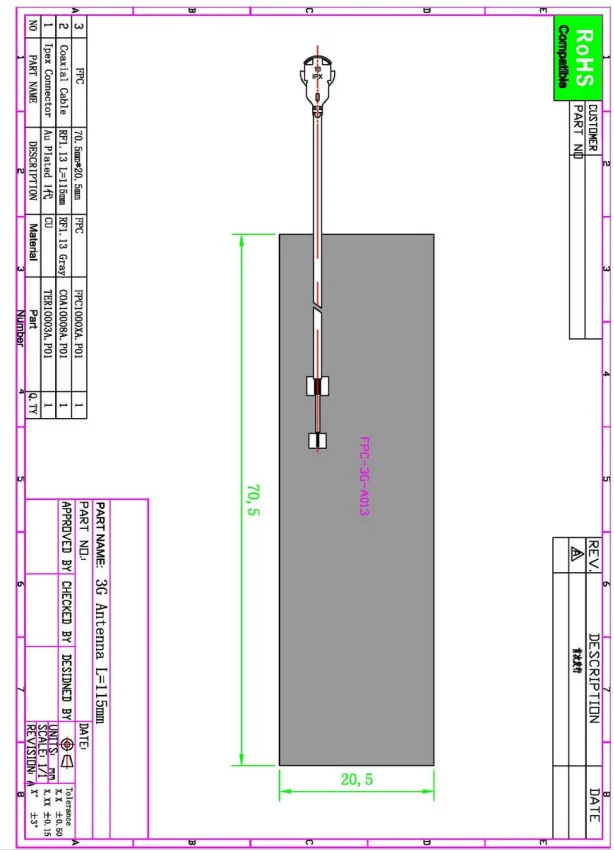

1)physical characteristics





Size(mm)

70.5×20.5



Cable

length(mm)

115

























Cable connector

IPEX/SMA or customized



CABLE

TYPES

RG113 or customized





























-40℃~80℃











10%~95%



Working temperature

Working humidity























-45℃~85℃









10%~95%



Storage temperature



Store humidity





























1) electrical parameters









(MHZ)

820~960/1710~2170





(MHZ)

140/460



Working frequency



bandwidth





































2dB











50Ω



Gain (maximum direction)



impedance











































≤3.0



polarization

Linear polarization



Standing wave ratio
